ELECTRODE BLUE SENSOR FOAM PAED (N-00-S/25) PACK/25

Code: 26119-BO

AU$25.70
EACH (1)

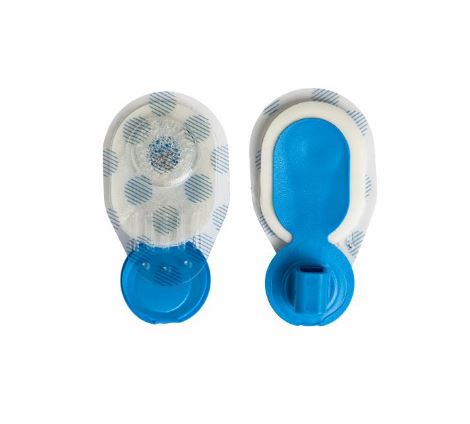

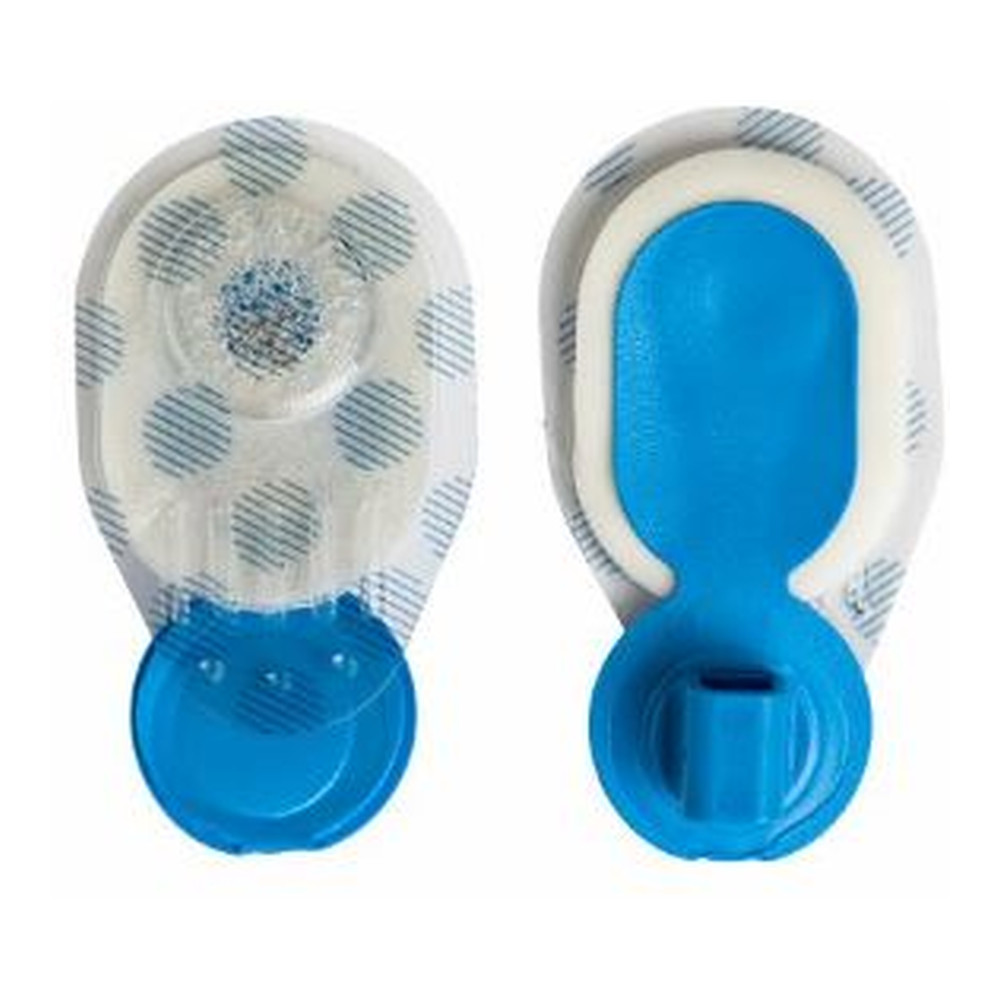

The small and narrow Ambu BlueSensor N is recommended for paediatric monitoring. It features conductive wet gel, offset connector and suitable adhesion to ensure signal during short-term applications.



• Offset connector mitigates the impact on signal quality from external forces like pulling of lead wires and pressure on electrodes

• Offset connector allows the user to connect and disconnect the lead wire without applying pressure to the patient or the sensor area, which reduces the risk of gel spreading and adhesive detachment from skin

• Conductive wet gel lowers skin impedance effectively and immediately

• Wet gel optimises contact between skin and electrode

• Adhesion is suitable for short-term application

• Ag/AgCl sensor ensures stable signal quality

• Visible release liner can help prevent medical accidents for both users and patients

• Also available with preattached lead wire



Specifications

Specifications



Download the Product Data Sheet

Product Code: N-00-S/25

Quantity: Pack/25

Electrode Size: 44mm x 22mm (non-wire) 30mm x 22mm (prewired)

Skin Contact Size: 30mm x 20mm

Adhesive Area: 556mm²

Sensor material: Silver/silver chloride  (Ag/AgCl)

Gel system: Wet gel

Gel area/measuring area: 95mm²

AC impedance – typical: 610 Ω

DC offset voltage – typical: 0.5 mV

Defibrillation overload recovery – typical: 10.21 mV

Rate of change of polarisation potential – typical: -0.17 mV/s

Combined offset instability and internal noise: 3.6 μV

Bias current tolerance (over 8 hours): 2.2 mV
